Stamped Concrete Grinding & Pattern Removal – 80 m² Driveway

Project Overview

This approximately 80 m² driveway required considerably more than a light surface grind. The customer wanted the existing stamped-concrete pattern removed, including decorative lines that had been pressed deeply into the slab. Removing the design meant mechanically cutting down the surrounding concrete until the impressions no longer dominated the surface.

We used Redi-Lock diamond tooling and completed the work through controlled, overlapping grinding passes. The slope added another challenge because the grinder had to be managed carefully to avoid uneven cutting or downhill drift. Approximately 400 kg of concrete and grinding material was removed before the driveway reached a consistent 16-grit mechanically ground profile.

• Area: Approximately 80 m²
• Challenge: Deep stamped lines across a sloped driveway
• Process: Repeated Redi-Lock diamond grinding and extensive hand preparation
• Material removed: Approximately 400 kg
• Final stage: Consistent coarse 16-grit mechanical profile

Why Stamped-Pattern Removal Is Different

A stamped design is physically formed into concrete; it cannot simply be cleaned away. Deep decorative grooves require material to be removed from the surrounding high areas before the overall surface can become consistent. That makes stamped concrete removal very different from a light coating-preparation pass.

The work must be controlled. Cutting too aggressively in one section can create a low area, while inadequate overlap can leave raised strips, remaining pattern lines or visible grinder tracks. The achievable result also depends on the depth of the impressions and the condition of the concrete, so not every stamped slab should be approached in exactly the same way.

The Main Challenge: Deep Lines and a Sloped Driveway

The two main difficulties were the depth of the decorative lines and the noticeable slope. A floor grinder can pull or travel differently on an incline, making it harder to maintain even pressure across the diamond tooling.

We managed the machine speed, operator position, pass direction and overlap while continually checking the cutting pattern. This is why sloped driveway grinding requires experienced handling as well as suitable machinery. The work could not be rushed simply by increasing the cutting pressure.

Site Setup and Grinding Plan

Before heavy grinding began, we inspected the stamped pattern, identified the deepest lines and reviewed the driveway edges, transitions and boundaries. We planned the grinder travel direction around the slope and organised the work area so grinding debris could be collected and removed.

We also checked the performance of the grinder and diamond tooling as the work progressed. Regular surface checks showed where additional removal was needed and prevented unnecessary cutting in sections that had already reached the required preparation stage.

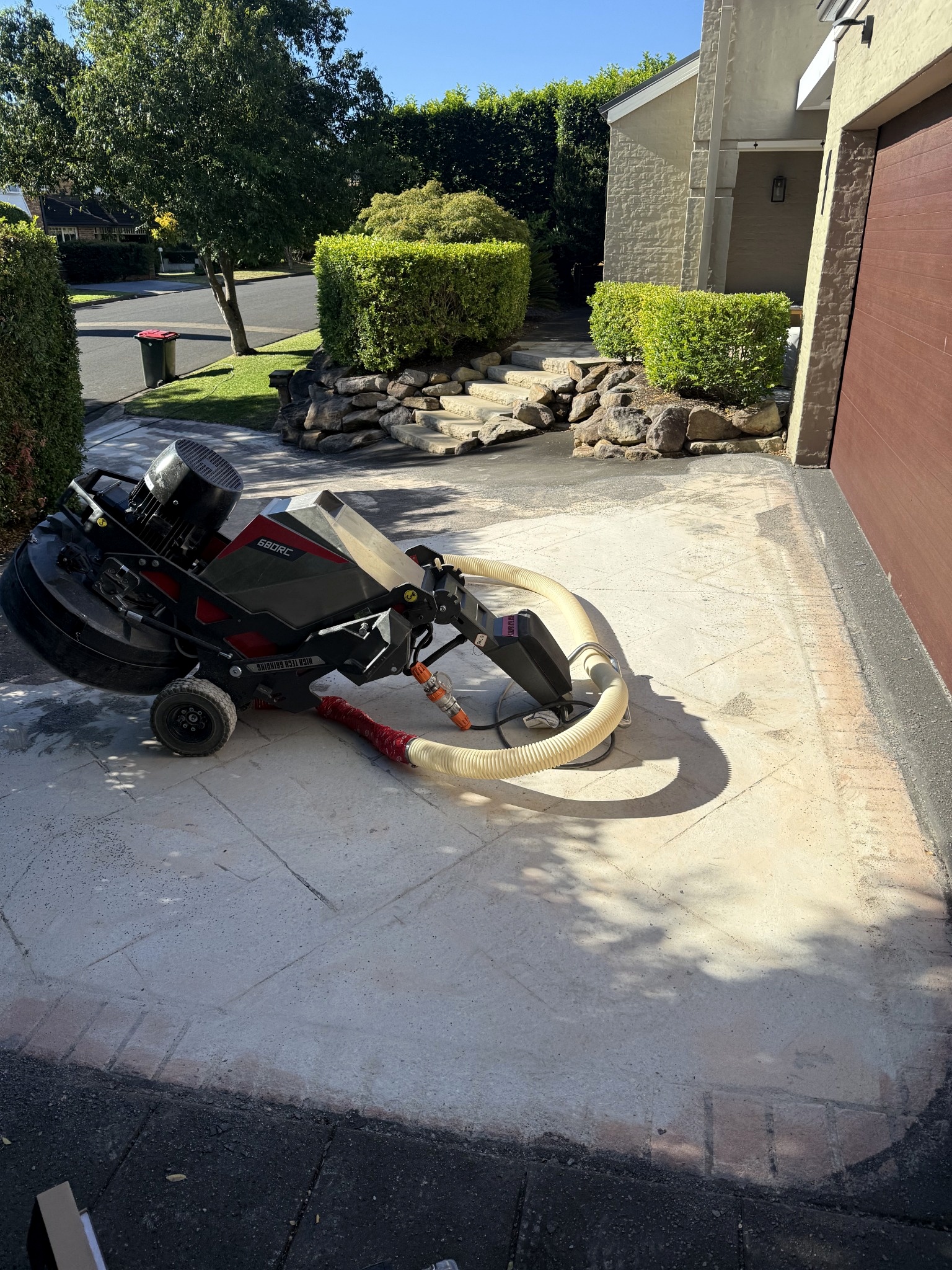

Redi-Lock Diamond Grinding

Redi-Lock diamond tooling was used to mechanically reduce the raised concrete around the stamped impressions. Rather than attempting to remove the entire pattern in one aggressive run, we completed repeated passes and progressively brought the surface down.

Each grinder path slightly overlapped the previous path. These clean laps helped reduce ridges and missed strips, while changes in grinding direction improved the consistency of the cut. We concentrated additional passes only where remaining lines or uneven areas required them.

This driveway concrete grinding process involved genuine material removal. The approximately 400 kg of collected concrete and grinding material demonstrates the difference between a light preparation grind and deep decorative concrete removal.

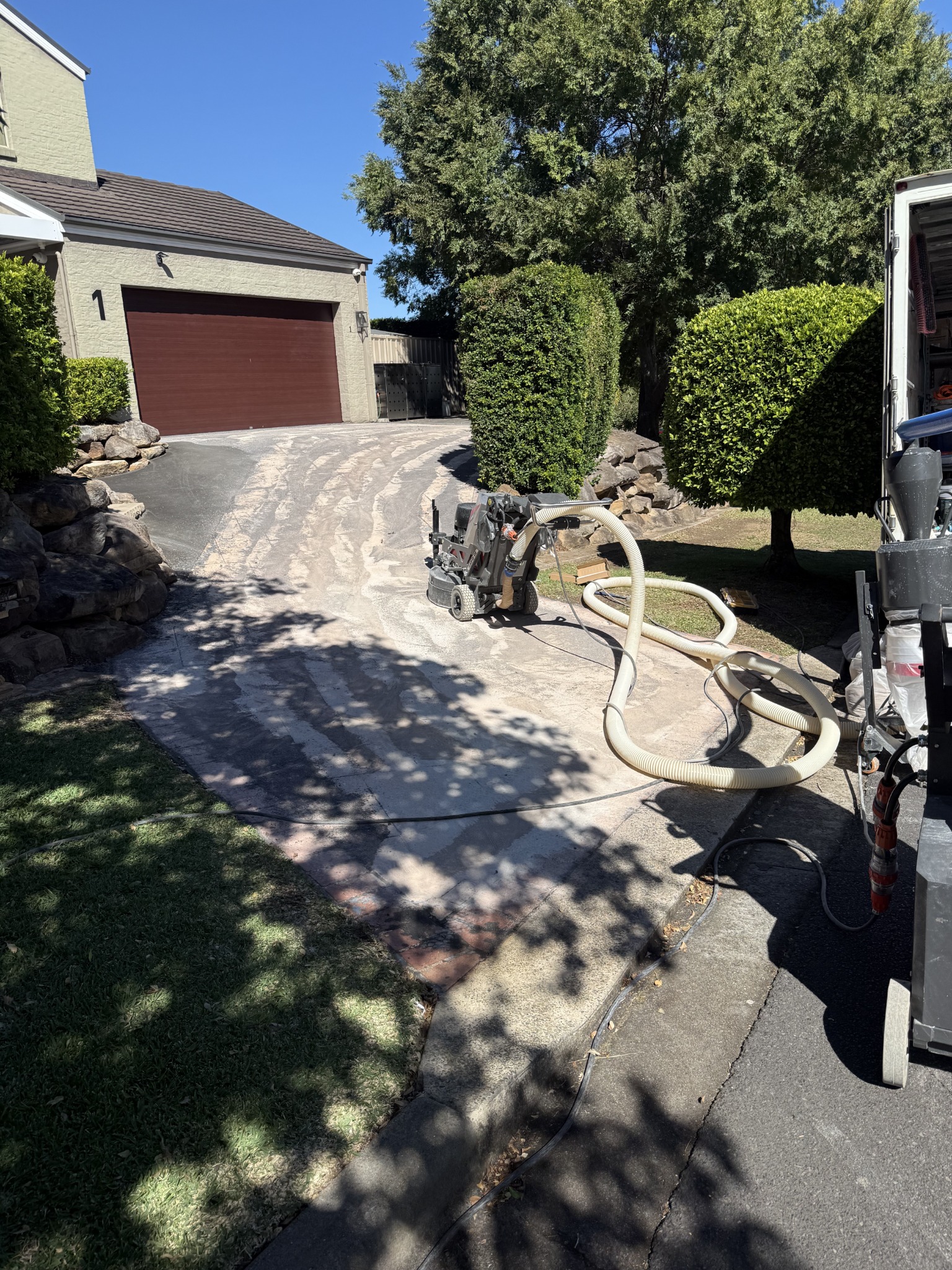

Grinding on the Driveway Slope

The slope increased both the physical and technical demands of the work. The grinder had to be controlled so it did not drift downhill or cut more heavily on one side. Consistent travel speed, stable operator positioning and the direction of each pass were important to maintaining an even result.

We inspected the surface from different viewpoints because machine lines or remaining stamped sections can become more obvious when light falls across a sloped slab.

Hand Grinding and Edge Preparation

The main floor grinder could not reach every perimeter, corner, transition or tight section. A substantial amount of hand grinding was therefore required around the driveway boundaries and in localised sections where the stamped lines remained.

This was not a minor finishing step. Without detailed edge work, the centre could appear prepared while obvious decorative lines remained around the perimeter. We brought the hand-ground sections into a consistent relationship with the machine-ground area and checked the transitions carefully.

Final 16-Grit Mechanical Profile

The completed surface was left with a consistent 16-grit mechanically ground profile. This is a coarse, open concrete surface created through heavy diamond grinding. It is not polished concrete and should not be presented as a completed decorative finish.

Our final inspection included checking for remaining stamped lines, reviewing the consistency of the passes, inspecting hand-ground edges and transitions, and removing loose grinding debris. We confirmed that the requested grinding stage had been completed without making unsupported claims that the driveway was perfectly level or flawless.

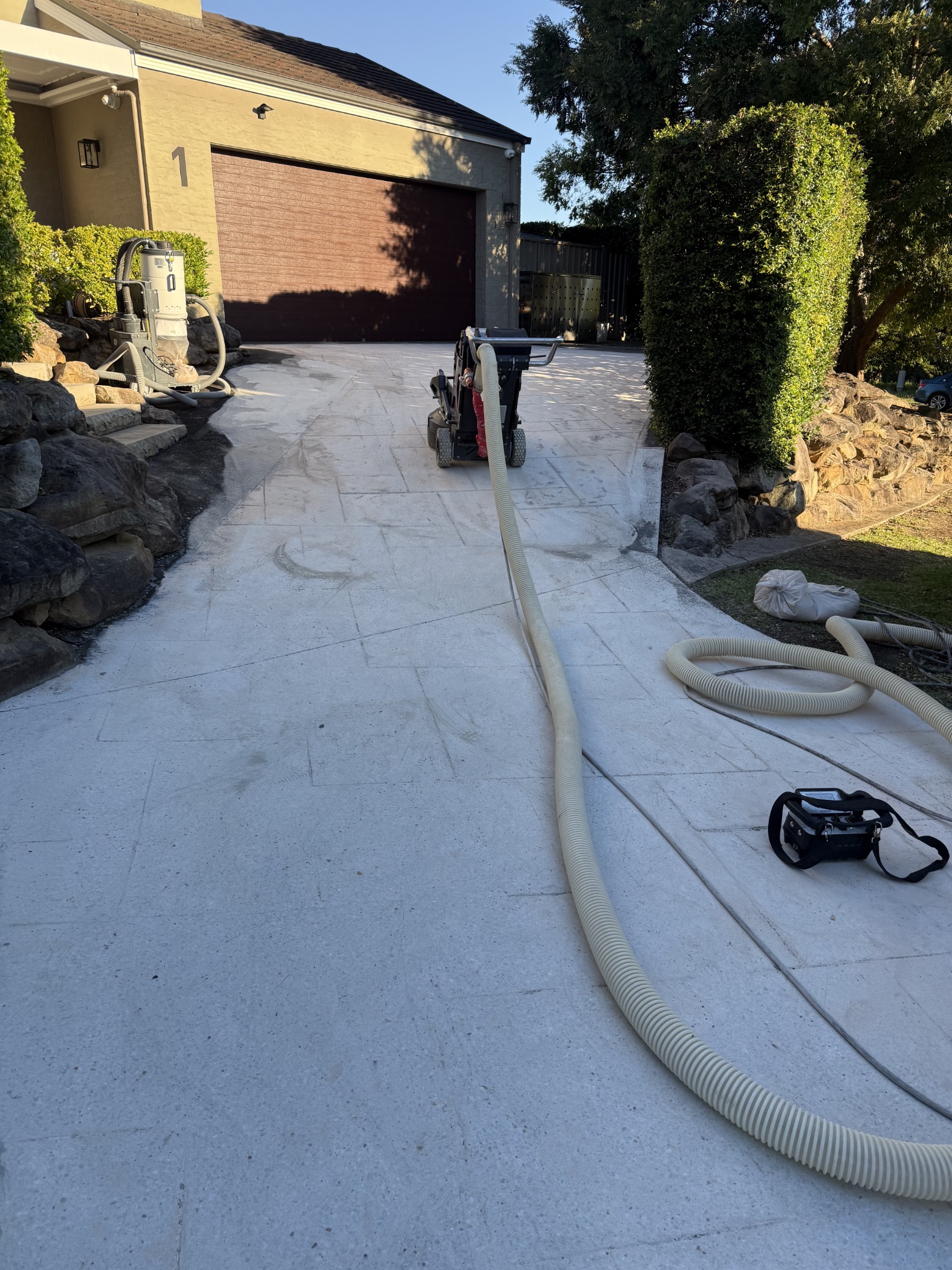

Completed Result

The original stamped appearance was removed through substantial concrete grinding rather than hidden beneath another product. The project demonstrates controlled stamped concrete grinding, sloped-surface machine handling, Redi-Lock diamond grinding, detailed edge preparation and measured material removal.

No coating, overlay or sealer is claimed as part of this case study. The verified result was the 16-grit mechanically prepared concrete surface.

Frequently Asked Questions

Can a stamped-concrete pattern be ground off?

Many patterns can be reduced or removed mechanically, but the amount of grinding depends on the depth of the impressions and the condition of the slab. Deep patterns may require substantial concrete removal and repeated passes.

Why was so much material removed?

The lines were pressed deeply into the concrete. The surrounding high concrete had to be reduced until it reached the lower level of the stamped impressions. Approximately 400 kg of concrete and grinding material was removed across this project.

Why is a sloped driveway harder to grind?

A grinder can pull downhill or cut unevenly on a slope. The operator must manage machine control, travel speed, pass direction and overlap to maintain a consistent surface.

What does a 16-grit profile mean?

It is a coarse mechanically ground concrete profile produced with aggressive diamond tooling for heavy removal and surface preparation. It should not be confused with polished concrete.

Why is hand grinding necessary?

Large grinders cannot reach tight edges, corners and perimeter transitions. Hand grinding removes remaining pattern lines and blends these sections with the main prepared area.
